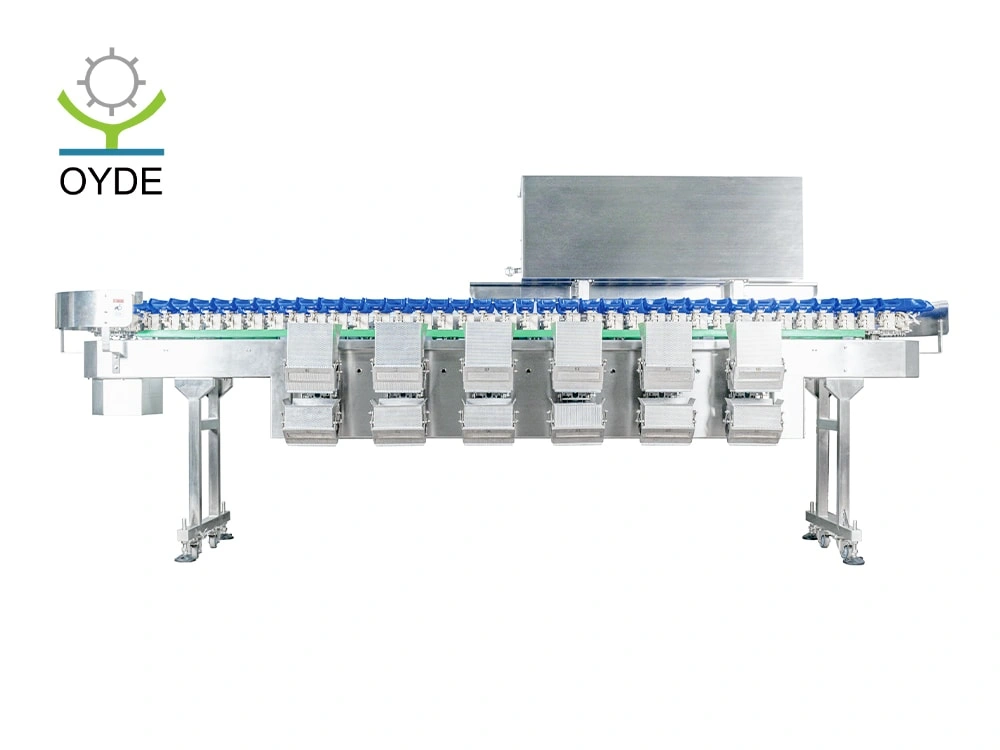

The box grading scale operates by rotating chain-driven boxes using two sprockets. Each box is weighed by a load cell to determine its material weight. A diverting mechanism then sorts the boxes into their respective weight categories based on the data, fulfilling the target weight distribution.
Equipment Advantages
Integrated Track Design: The one-piece track is made of high-molecular PE material, ensuring smooth and stable operation.
3g Auto-Calibration: The system automatically detects and corrects dynamic weighing errors within 3 grams during operation, eliminating the need for manual intervention.
One-Touch Calibration: Features a one-touch calibration function to maintain weighing accuracy with ease.
Self-Diagnosis Function: Equipped with a fault alert window to quickly and efficiently identify issues, minimizing downtime.
High Combination Accuracy: Delivers precise weight combinations, reducing material waste and boosting production efficiency.
Technical Features
High Speed: The equipment utilizes core components such as programmable logic controllers (PLCs), frequency converters, and electromagnetic actuators to ensure stable operation and high running speed.
High Precision: Equipped with an advanced weighing system for stable and reliable data, along with cutting-edge data processing technology to guarantee exceptional measurement accuracy.
User-Friendly Operation: The seamless integration of PLC and HMI allows for storage of multiple product recipes, enabling simple and convenient "one-touch" operation.
Accurate Material Discharge: The team has meticulously developed a new-generation material box to ensure fresh products are precisely discharged into the target hopper.
High Weighing Precision: A multi-sensor solution combined with a "dynamic-static hybrid" approach enhances combination accuracy.
Algorithm Upgrades: AI technology assists the team's proprietary combination algorithm, improving both speed and precision while boosting overall equipment productivity
| Equipment Parameter | |
| Box Size | 200*90*55mm |
| Weighing Range | 10-500g |
| Equipment Dimension | 4420*2640mm(customizable) |
| Speed | 130-220个/min(≥20 pc/pack) |
| Combination Precision | ±5-20g |
| Combination Accuracy | ≥95% |
| Max. Combination Weight | 2.5KG |
| Material | SUS304 |
| Power Supply | 220V/AC |
Poultry cuts: chicken breast, mid-joint wings, drumettes, drumsticks, chicken feet, duck feet, duck gizzards, duck breast etc.
Fresh meat: Pork, beef, rabbit legs, pork trotters etc.
